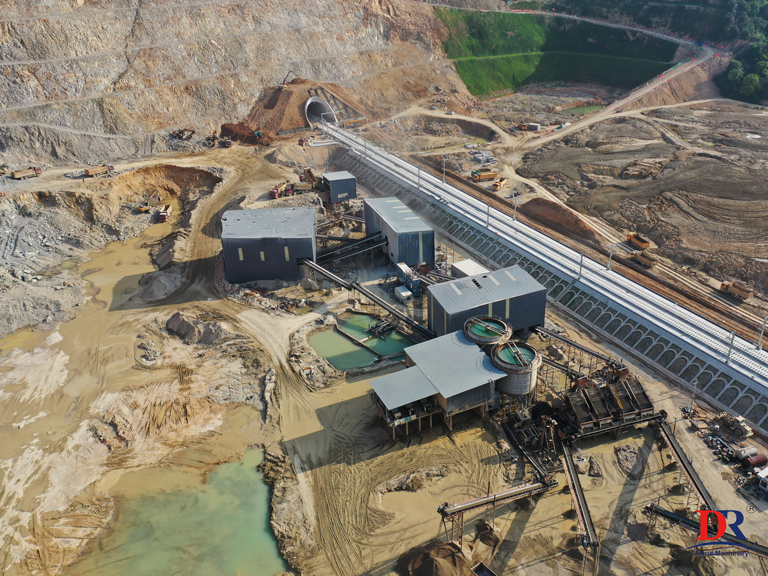

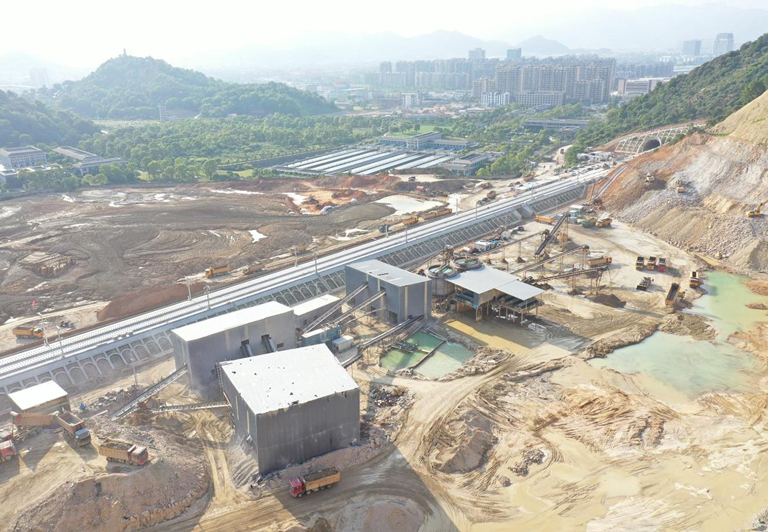

Site Overview

    ●   Material: Diorite

    ●   Capacity: 1200tph

    ●   Feed Size: 1000mm

    ●   Product Size: 22-31.5mm, 10-22mm, 5-10mm, 0-5mm

Project Background

The investor in the construction of the Taizhou 1316 production line has a high requirement for project return on investment and a daily working time of 18 hours or more. After multiple inspections, our company's equipment was selected as the crushing equipment for the production line.

This production line is a high-standard and environmentally friendly sand and stone aggregate production line with a production capacity of 1,200 tons per hour and supporting facilities. During the trial operation period of the project, there was no failure rate, and after formal operation, there has been no major repair or replacement, only requiring daily maintenance and minor repairs to operate well. It has received high praise from the investor.

Equipment applied

ZW1660 Vibrating Feeder x 1                         PE1300*1600 Jaw Crusher x 1

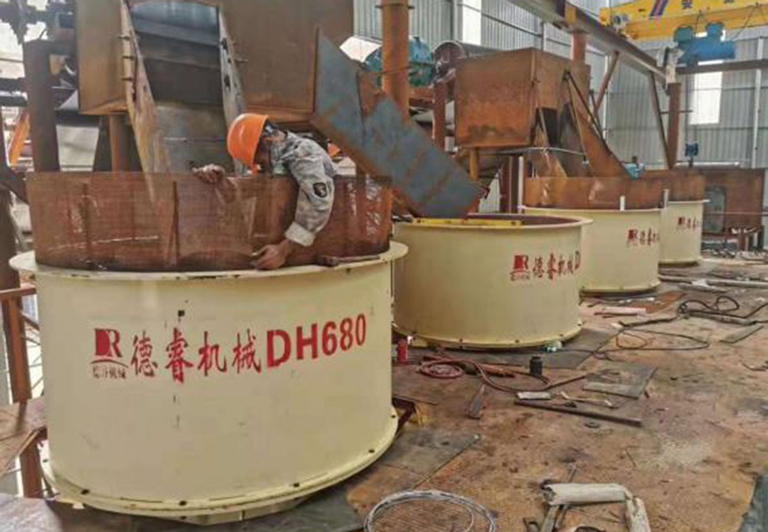

DH680 Cone Crusher x 2                             500m²Mud Press Filter x 4

HPY500 one Crusher x 2                             ZW1525 Feeder x 2

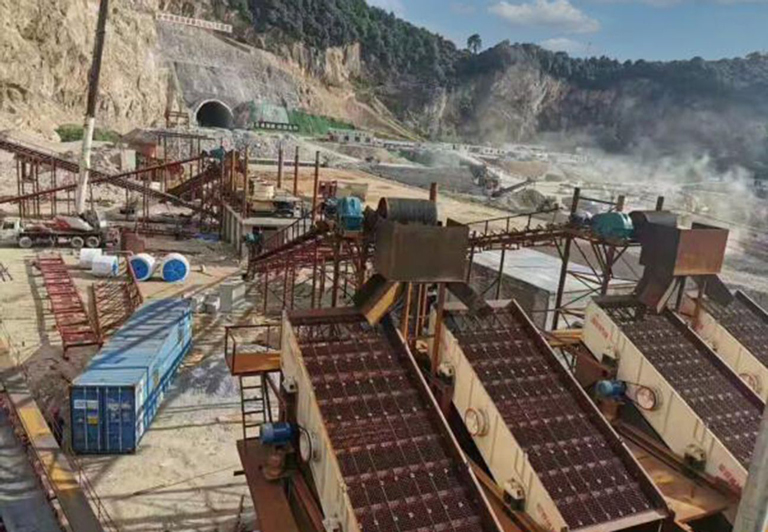

2YKJ2870 Vibrating Screen x 4                        3YKJ2870 Vibrating Screen x 4

XSD4520 Sand Washer x 4

DR2445 Fine Sand Recycling and Dewatering Integrated Machine x 2

PYB2200 Cone Crusher x 1

Feature and Benefits

This production line adopts the EPC general contracting model, which is beneficial for project cost and schedule control and can maximize the advantages of various parties involved in the project construction.

This production line is equipped with multiple environmental protection equipment to meet the on-site environmental protection requirements and achieve harmony between production and the natural environment.

The reasonable equipment configuration makes the production of the entire production line more efficient, energy-saving, and intelligent.
