H Series Multi-cylinder Hydraulic Cone Crusher Cone Crusher

Capacity

314~2600 tph

CSS

6~80mm

Power

450~710 kw

Request a Quote

Brochure

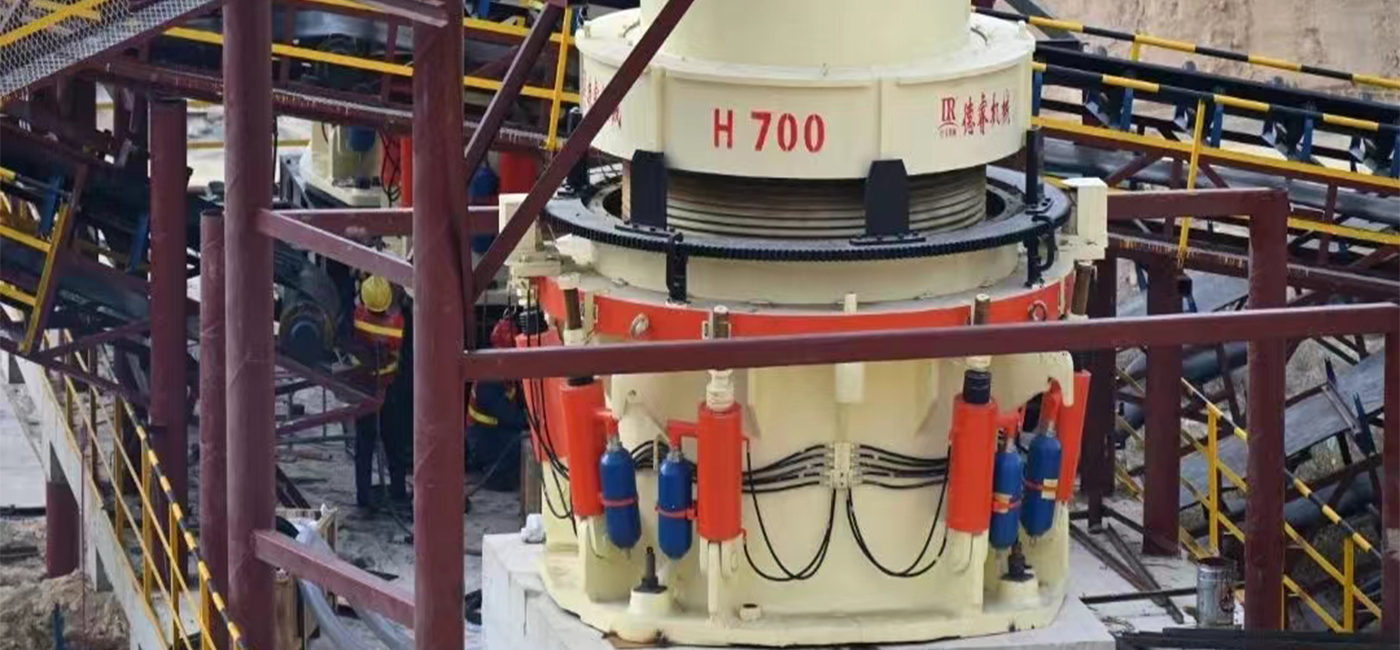

H Series Multi-cylinder Hydraulic Cone Crusher

Cone Crusher

Capacity
314~2600 tph

CSS
6~80mm

Power
450~710 kw

Request a Quote

Brochure

Features

Technical specifications

Gallery

Features

Technical specifications

Gallery

Features

The H-series multi-cylinder hydraulic cone crusher is a fully hydraulic cone crusher with excellent quality developed based on the absorption of advanced crushing technology and the company's many years of crushing experience.

It can be widely used in industries such as metallurgy, construction, hydropower, transportation, chemical, and building materials.

In practice, the H-series multi-cylinder hydraulic cone crusher has demonstrated excellent performance in medium, fine, and ultra-fine crushing operations.

Technical specifications

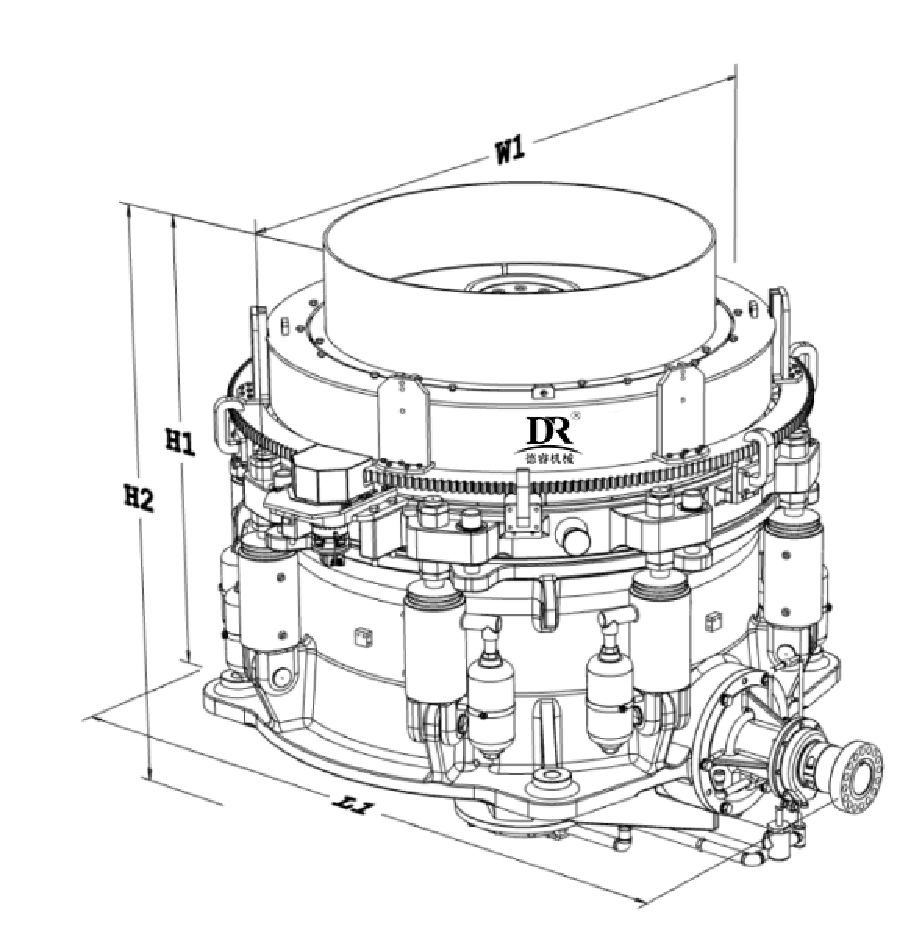

Overall Dimension(mm)
Model	Length L1	Width W1	Height H1	Height H2
H700	5080	4080	3300	4320
H900	5020	5055	3310	4330

Model	Cavity		Max. Feed Size(mm)	Feed Opening(mm)		Closed-side setting(mm)	Capacity(tph)	Power(kw)
Model	Cavity		Max. Feed Size(mm)	Closed Side	Opening Side	Closed-side setting(mm)	Capacity(tph)	Power(kw)
H700	Short Head	Fine	180	51	105	6-16	314-475	400~450
		Medium		95	133	10-19	410-590
		Coarse		95	133	10-19	410-590
		Coarse		127	178	13-25	525-695
		Extra Coarse		152	203	16-25	588-756
	Standard	Fine	400	253	278	19-38	565-840
		Medium		303	334	25-51	705-1160
		Coarse		334	369	31-89	910-1450
		Extra Coarse		425	460	60-130	1000-1550
H900	Short Head	Fine	200	60	120	10-16	560-670	630~710
		Fine		100	150	13-19	670-810
		Medium		100	150	13-19	670-810
		Coarse		130	190	16-22	770-1000
		Extra Coarse		160	220	19-25	920-1190
	Standard	Fine	450	245	330	45-250	700-1200
		Medium		280	375	60-250	1050-1900
		Coarse		380	465	70-250	1300-2500
		Extra Coarse		460	495	80-250	1500-2600
