Our company's feeder series consists of two types: vibratory feeders and linear feeders. The vibratory feeder series uses two vibratory motors, allowing users to adjust the vibration frequency of the feeder and fully control the feeding speed of the stones, ensuring the smooth operation of the entire production line.

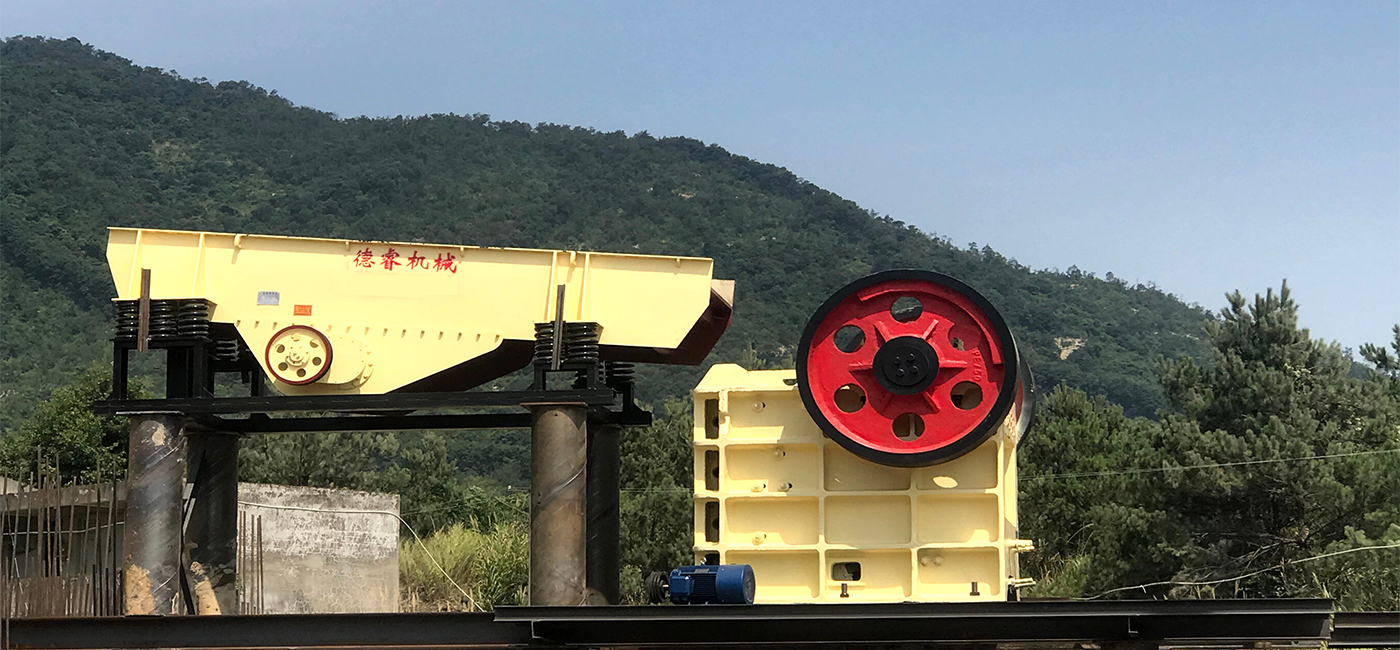

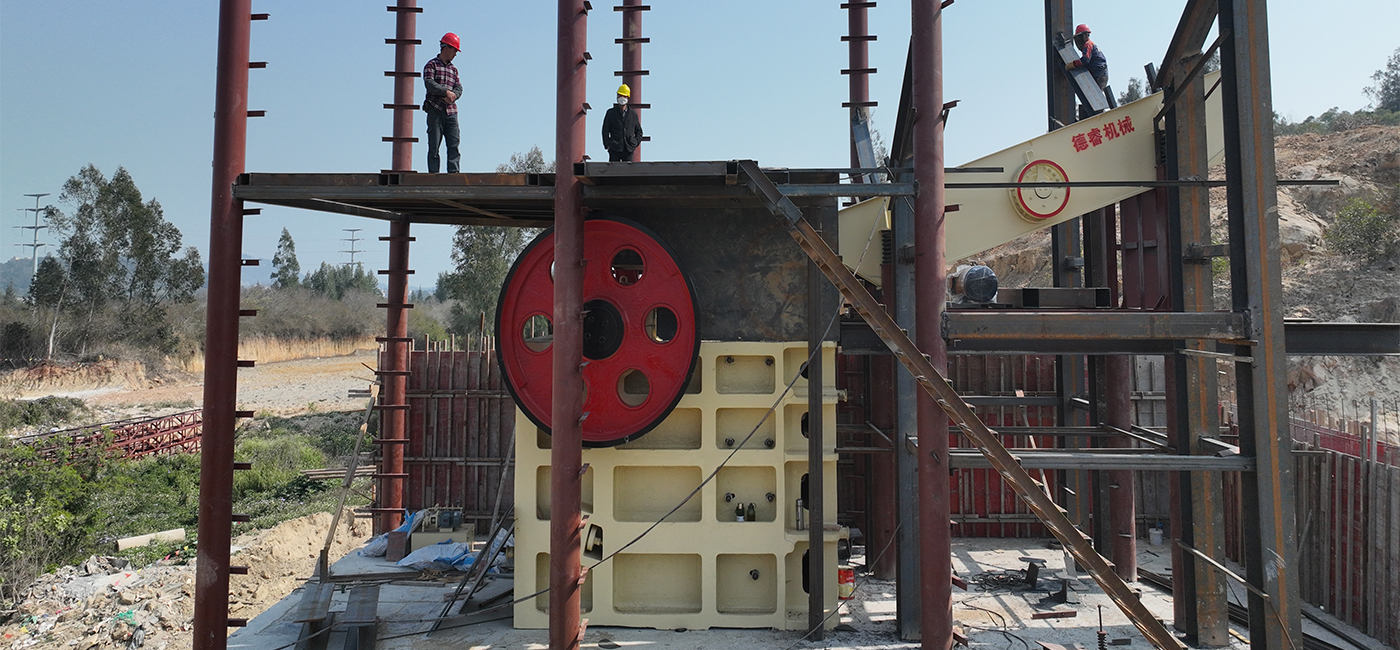

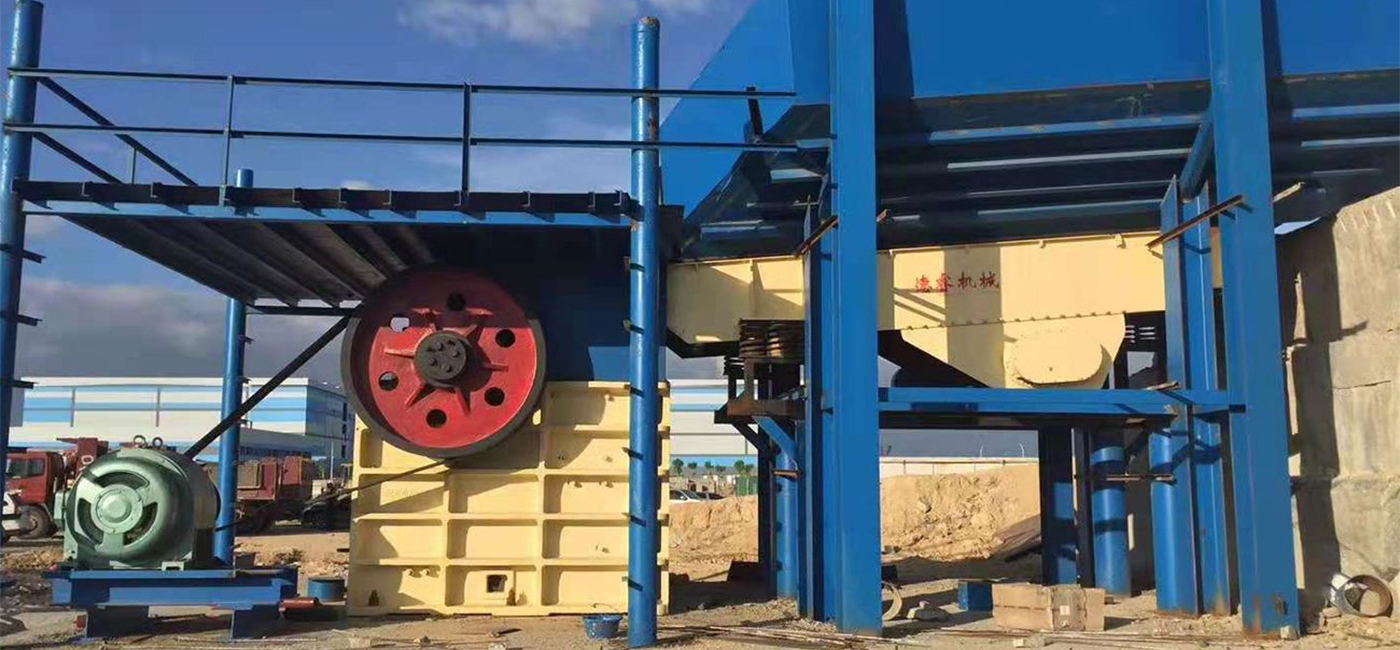

The linear vibrating feeder has the characteristics of smooth vibration, reliable operation, and long service life. It can continuously and uniformly feed crushing machinery and perform coarse screening on materials. It is widely used in ore beneficiation, building materials, silicate, and chemical industries for crushing and screening combined equipment.
Overall Dimension(mm) | |||
Model | Length L1 | Width W1 | Height H1 |
ZSW380 x 96 | 3800 | 1540 | 1660 |
ZSW490 x 110 | 4900 | 1700 | 1660 |
ZSW590 x 110 | 5900 | 1840 | 1900 |
ZSW600 x 130 | 5980 | 2050 | 1950 |
Model | Deck Dimension(mm) | Max.Feed Size(mm) | Capacity(tph) | Eccentric Shaft Speed(r/min) | Power(kw) | Weight(t) |
ZSW380 x 96 | 3800X940 | 500 | 100-160 | 500-720 | 18.5 | 5 |
ZSW490 x 110 | 4900X1100 | 580 | 120-280 | 500-800 | 22 | 6 |
ZSW590 x 110 | 5900x1100 | 600 | 200-350 | 500-800 | 30 | 7.2 |
ZSW600 x 130 | 6000X1300 | 600 | 400-560 | 500-800 | 37 | 9 |
