The impact crusher is an efficient and energy-saving crushing equipment. Its characteristic is that the crushing operation can fully utilize the energy of the entire rotor, relying on the high-speed rotation of the plate hammer to strike and eject the material repeatedly to impact the counterattack plate. The material is broken by multiple impacts, resulting in a large crushing ratio and selective crushing. The product is mostly cubic with uniform particle size. It is widely used in the building materials, chemical, coal, and coke industries for crushing limestone, dolomite, shale, sandstone, coal, and asbestos rock, among other materials.

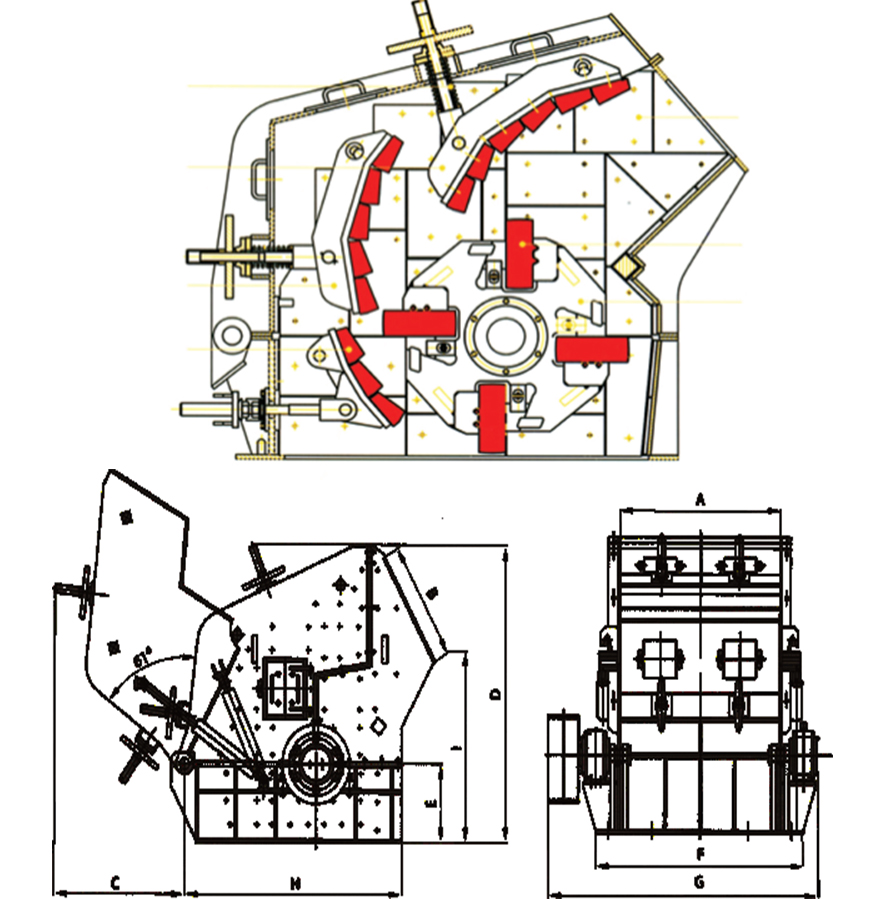

Model | Dimension(mm) | ||||||||
A | B | C | D | E | F | G | H | I | |
PF-1007 | 820 | 700 | 1000 | 2660 | 600 | 1260 | 1475 | 1850 | 1500 |
PF-1010 | 1170 | 720 | 1100 | 2500 | 550 | 1600 | 2000 | 1740 | 1500 |
PF-1210 | 1090 | 465 | 1550 | 2710 | 600 | 1776 | 2050 | 2115 | 1735 |
PF-1214 | 1440 | 465 | 1550 | 2710 | 600 | 2126 | 2410 | 2115 | 1735 |
PF-1315 | 1530 | 990 | 1425 | 2615 | 685 | 2242 | 2730 | 2360 | 1655 |
PF-1316 | 1640 | 990 | 1425 | 2615 | 685 | 2470 | 2840 | 2360 | 1655 |
PF-1515 | 1530 | 867 | 910 | 3290 | 798 | 2242 | 2835 | 2735 | 2157 |
PF-1520 | 2030 | 1690 | 1530 | 4175 | 1128 | 2910 | 3695 | 2925 | 2440 |
Model | Feed openning(mm×mm) | Max. feed size(mm) | Capacity(tph) | Power(kw) | Weight(t) | Dimension(mm) |
PF-1007 | 820×700 | 300 | 24-45 | 55 | 9.5 | 2400×1558×2660 |
PF-1010 | 1170×720 | 350 | 50-80 | 75 | 10 | 2532×1985×2196 |
PF-1210 | 1090×465 | 350 | 80-130 | 110 | 14 | 2645×2050×2710 |
PF-1214 | 1440×465 | 350 | 100-160 | 132 | 16.8 | 2645×2410×2710 |
PF-1315 | 1530×990 | 350 | 140-200 | 220 | 22 | 3160×2730×2615 |
PF-1316 | 1640×990 | 350 | 150-220 | 220 | 23 | 3160×2840×2615 |
PF-1515 | 1530×748 | 350 | 150-280 | 280-315 | 28.5 | 3555×2835×3290 |
PF-1520 | 2030×1200 | 400 | 350-500 | 500-560 | 55 | 4290×3695×4175 |
