DRC series spring cone crusher

Impact Crusher

Capacity
18~725 tph

CSS
6~64mm

Power
55~320 kw

Request a Quote

Brochure

Features

Technical specifications

Gallery

Features

Technical specifications

Gallery

Features

The DRC cone crusher is a comprehensive type of cone crusher that incorporates springs and hydraulic clearing chamber. It is capable of crushing medium to high hardness materials and is commonly used in industries such as mining, chemical, road and bridge construction, and building. It is suitable for crushing various ores and rocks with compressive strength below 300Mpa, such as iron ore, non-ferrous metal ore, basalt, granite, limestone, quartzite, sandstone, and pebble.

Technical specifications

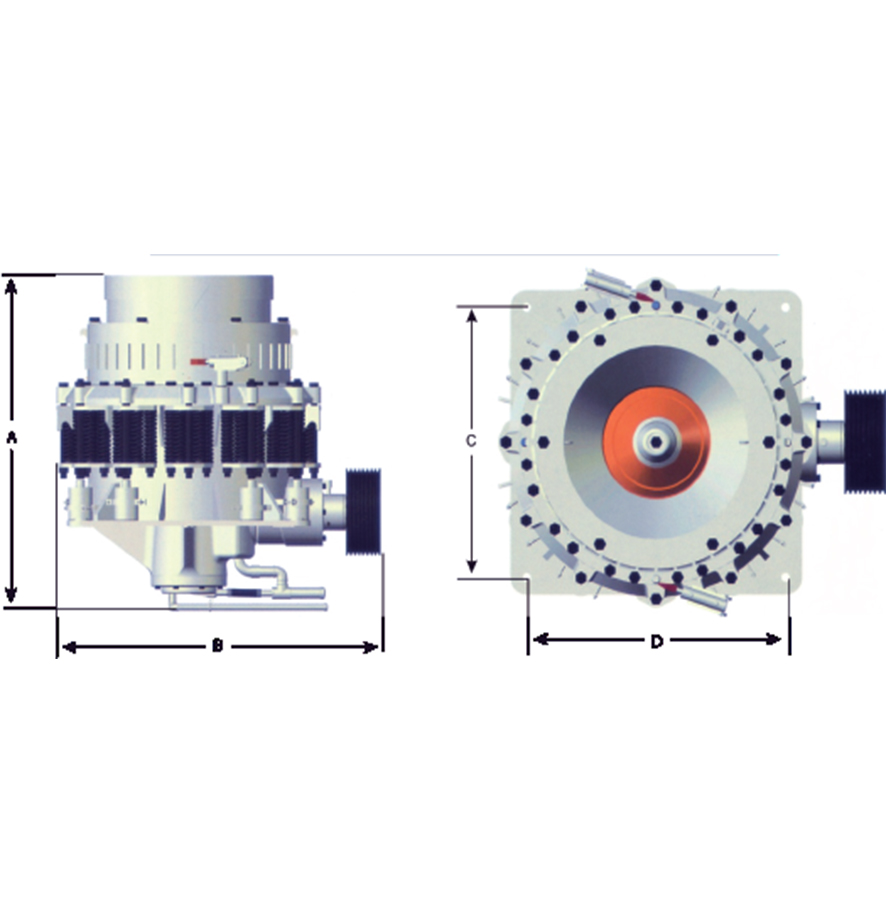

Model	A(mm)	B(mm)	C(mm)	D(mm)
DRC900	1450	1745	1000	1000
DRC1000	2150	2260	1400	1400
DRC1200	2320	2480	1580	1580
DRC1300	2750	2800	1765	1765
DRC1400	2830	2950	1950	1950
DRC1650	3280	3270	2000	2000
DRC1900	3660	3580	2460	2400

Model	Cavity	MAX. Feed size(mm)	Min. discharge opening size(mm)	Power(kw)	Capacity(tph) CSS(mm)
Model	Cavity	MAX. Feed size(mm)	Min. discharge opening size(mm)	Power(kw)	6	10	13	16	19	22	25	38	51	64
DRC900	C	130	10	55-75		20	25	30	35	45	50	76
DRC900	M	72	6	55-75	18	20	25	30	35	40	45	60
DRC1000	C	160	13	90-110			80	100	135	150	175	235
	M	115	10	90-110		52	65	75	90	120	135	150
	F	80	8	90-110	50	62	72	78	115
	EF	50	6	90-110		55	65	70	102
DRC1200	C	180	13	110-132			115	135	150	180	200	260
	M	130	10	110-132		60	100	110	120	135	165	175
	F	90	10	110-132		80	105	110	140
	EF	60	6	110-132		74	105	110	130
DRC1300	C	200	16	132-160				150	180	200	230	310	390
	M	150	13	132-160			115	140	160	190	210
	F	102	10	132-160		90	115	145	160
	EF	70	8	132-160		88	110	135	155
DRC1400	C	215	19	185-220					200	220	260	350	440
	M	160	16	185-200				155	180	200	220
	F	115	13	185-200			150	190	210	230
	EF	76	8	185-200		122	148	185	200
DRC1650	C	235	22	185-280						265	310	420	525	580
	M	175	19	185-280					215	240	265	320
	F	130	13	185-280			180	210	235	255	275
	EF	90	10	185-280		148	178	200	220
DRC1900	C	267	22	250-320						330	390	525	655	725
	M	203	16	250-320				230	270	300	330
	F	140	13	250-320		185	225	265	340
	EF	95	10	250-320		180	220	260	335
