PE Series Jaw Crusher
Jaw Crusher
Capacity
6~1760 tph
CSS
15~350mm
Power
15~630 kw
Request a Quote
Brochure

Features

This series of products have the characteristics of high crushing ratio, uniform product size, simple structure, reliable operation, convenient maintenance, and low operating costs.

They are widely used in many industries, such as mining, metallurgy, building materials, highways, water conservancy, and chemical industries.

The PE series jaw crusher is an excellent choice as the primary crushing equipment in a complete crushing production line.

Technical specifications

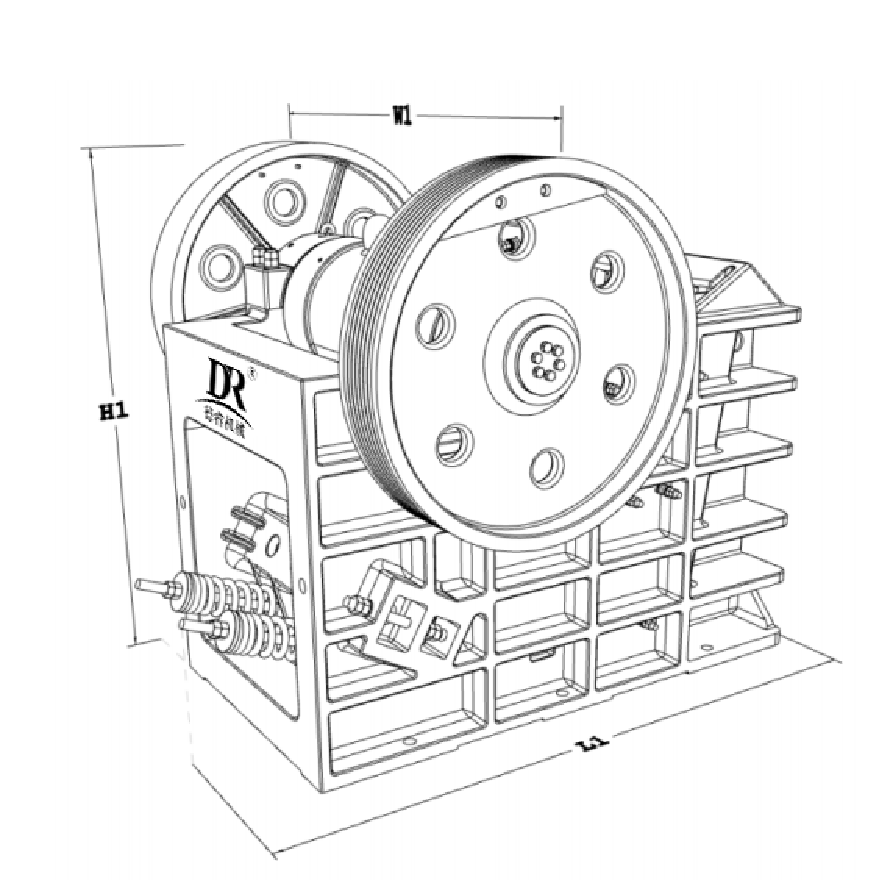

Overall Dimension(mm)
ModelLength L1Width W1Height H1
PE-500 x 750203019661920
PE-600 x 900221621442370
PE-750 x 1060252024402872
PE-870 x 1060268024702845
PE-900 x 1200309529703360
PE-1000 x 1200319529703360
 PE-1200 x 1500450034203725
PE-1300 x 1600413041104450
PE-1500 x 1800520039704450
PEX-250 x 1000153019901430
PEX-250 x 1200153021901430
PEX-300 x 1300170024701730
ModelFeed Opening(mm)Max. Feed Size(mm)Discharge opening(mm)Capacity(tph)Motor
ModelPower(kw)
PE-250X400500X75021020～806～85Y180M-615
PE-400X600400X60035072～6948～96Y250M-630
PE-500X750500X75042550～10048～96Y280M-655
PE-600X900600X90050065～18064～112Y315M-875
PE-750X1060750X1060630100～220120～211Y315L-8110
PE-870X1060870X1060700100～220160～360Y355M1-8132
PE-900X1200900X1200750100～220240～512Y355M2-8160
PE-1000X12001000X1200800100～220320～765Y355L-8180
PE-1200X15001200X1500900100～22080～960Y355L-6240
PE-1300X16001300X16001000130～2801120～1370Y450L1-8450
PE-1500X18001500X18001200200～3501440～1760Y450L2-8630
PEX-250X1000250X100021015～5016～51Y250M-630
PEX-250X1200250X120021015～5024～56Y250M-637
PEX-300X1300300X130025020～9032～144Y250M-655
