GC Series Jaw Crusher Jaw Crusher

Capacity

65~1590 tph

CSS

20~300mm

Power

75~400 kw

Request a Quote

Brochure

GC Series Jaw Crusher

Jaw Crusher

Capacity
65~1590 tph

CSS
20~300mm

Power
75~400 kw

Request a Quote

Brochure

Features

Technical specifications

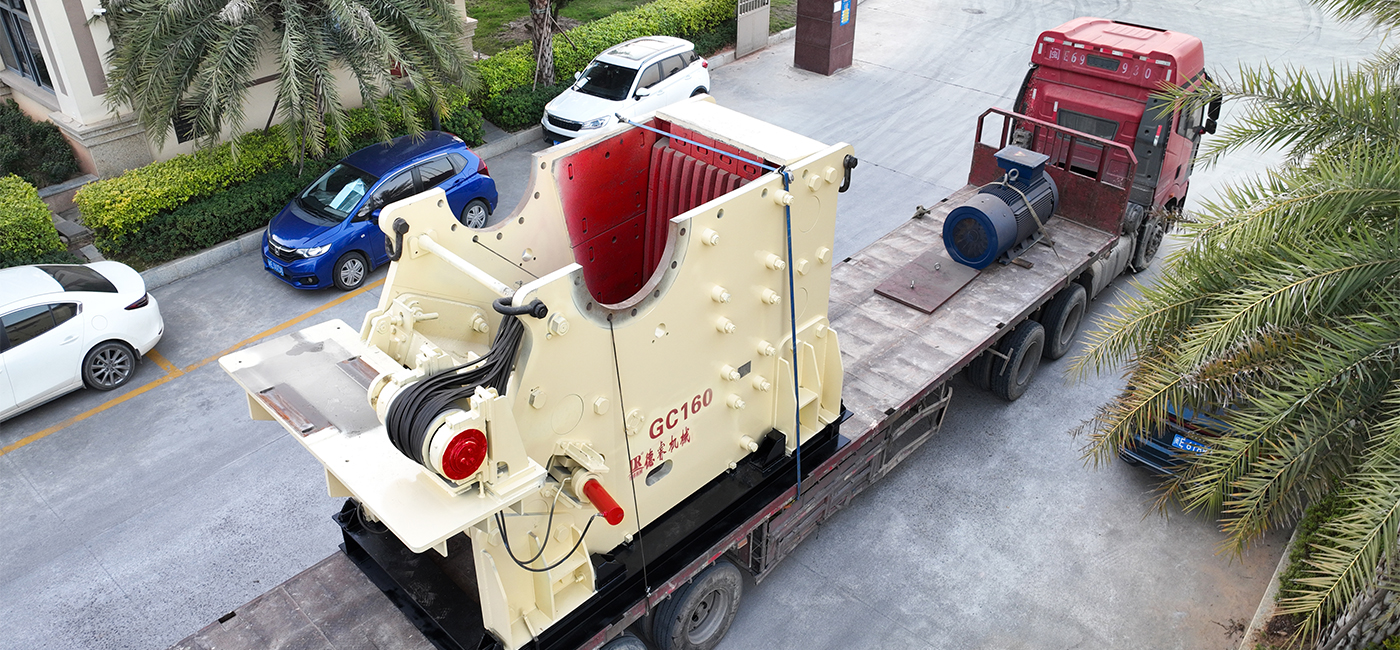

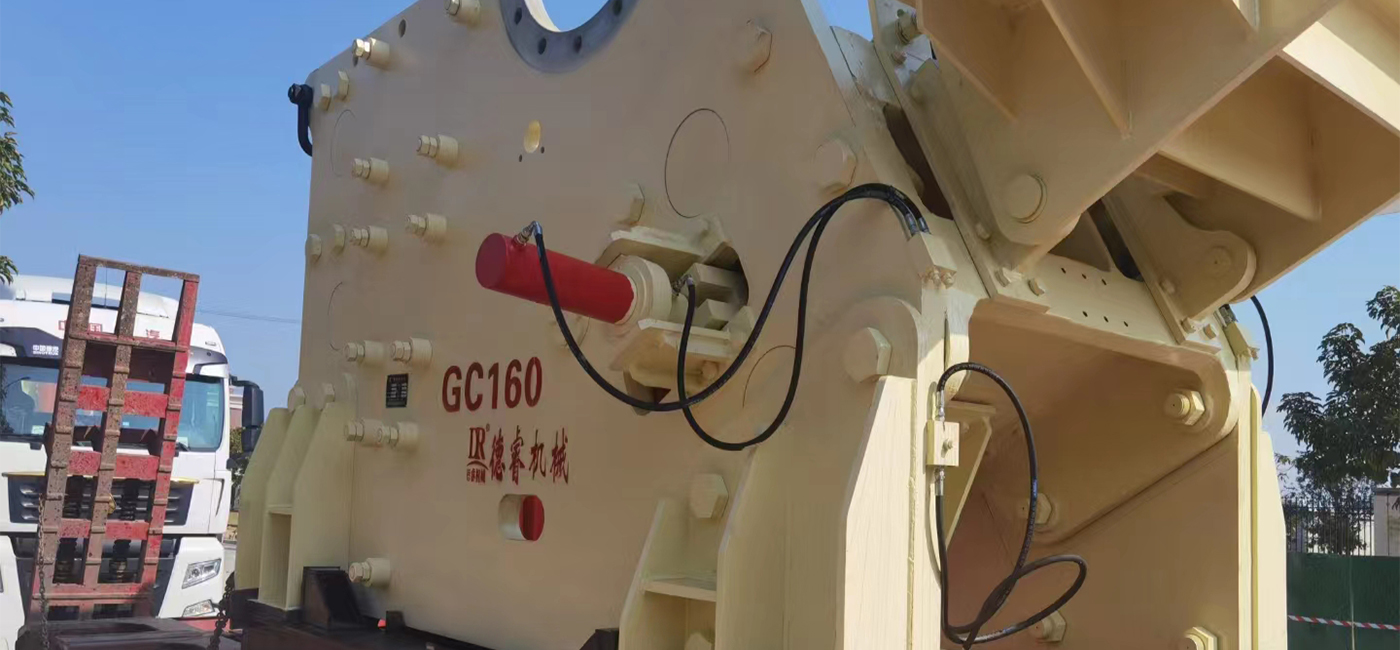

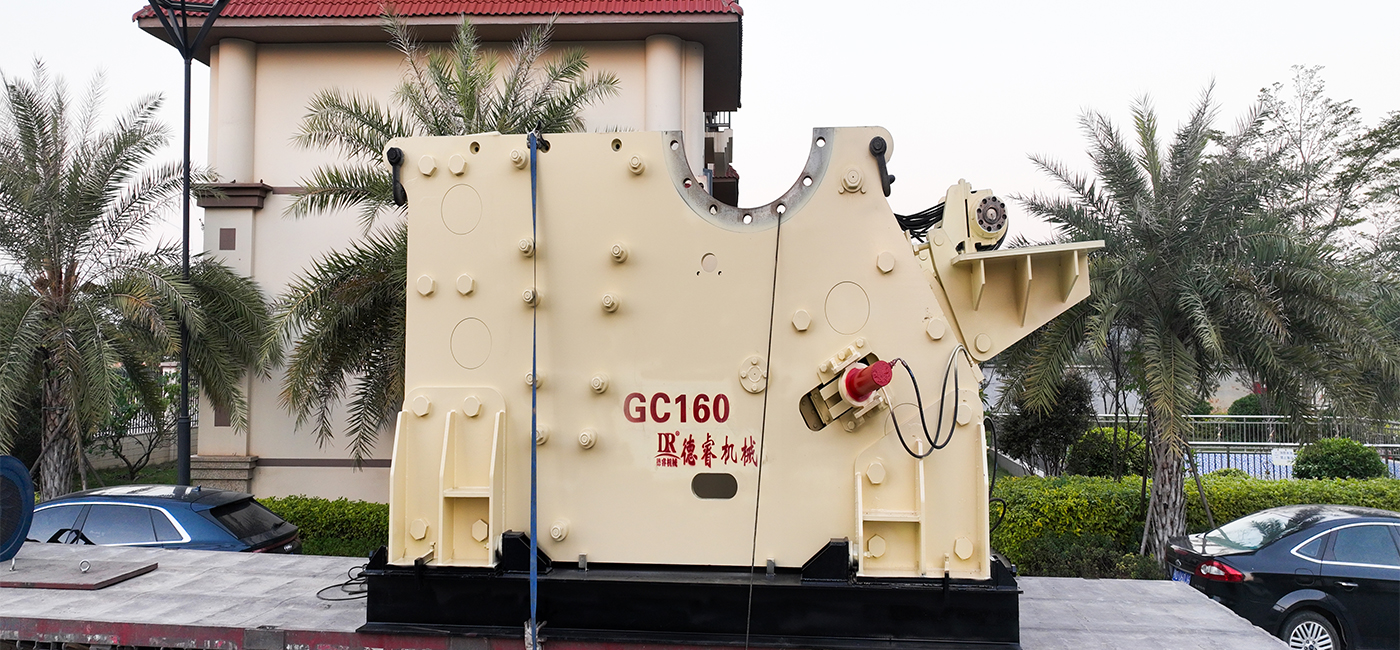

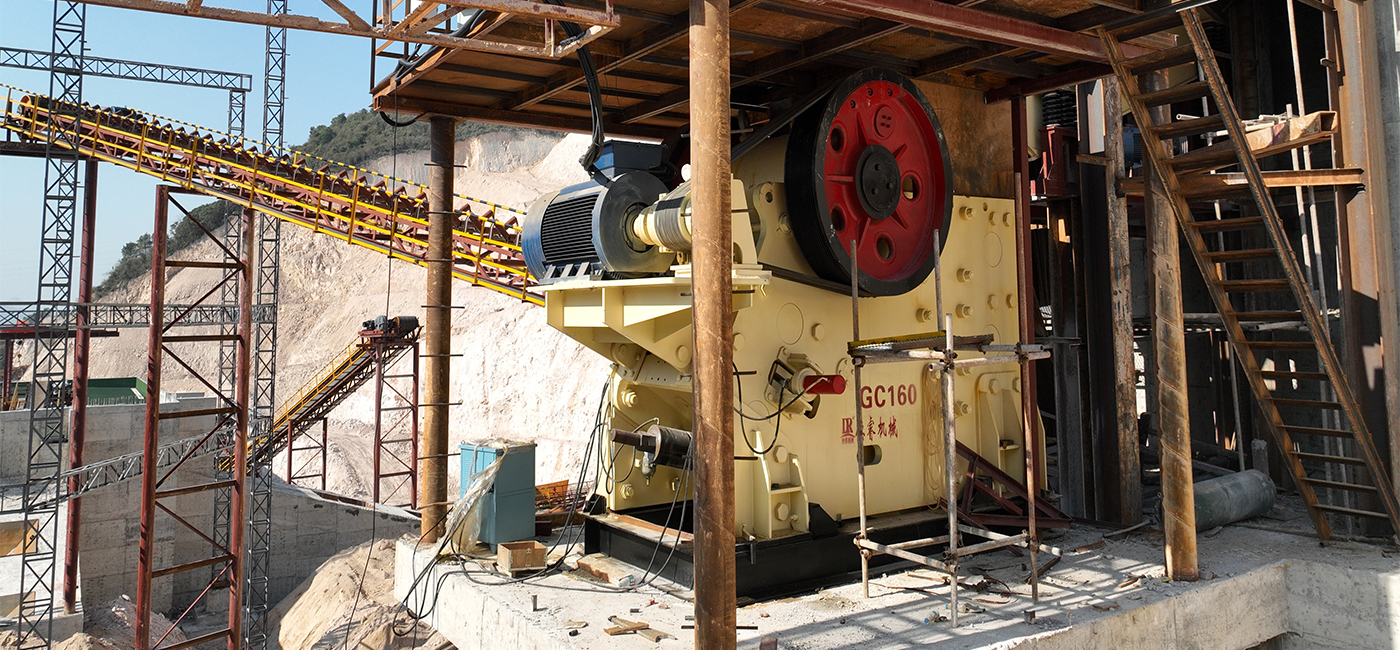

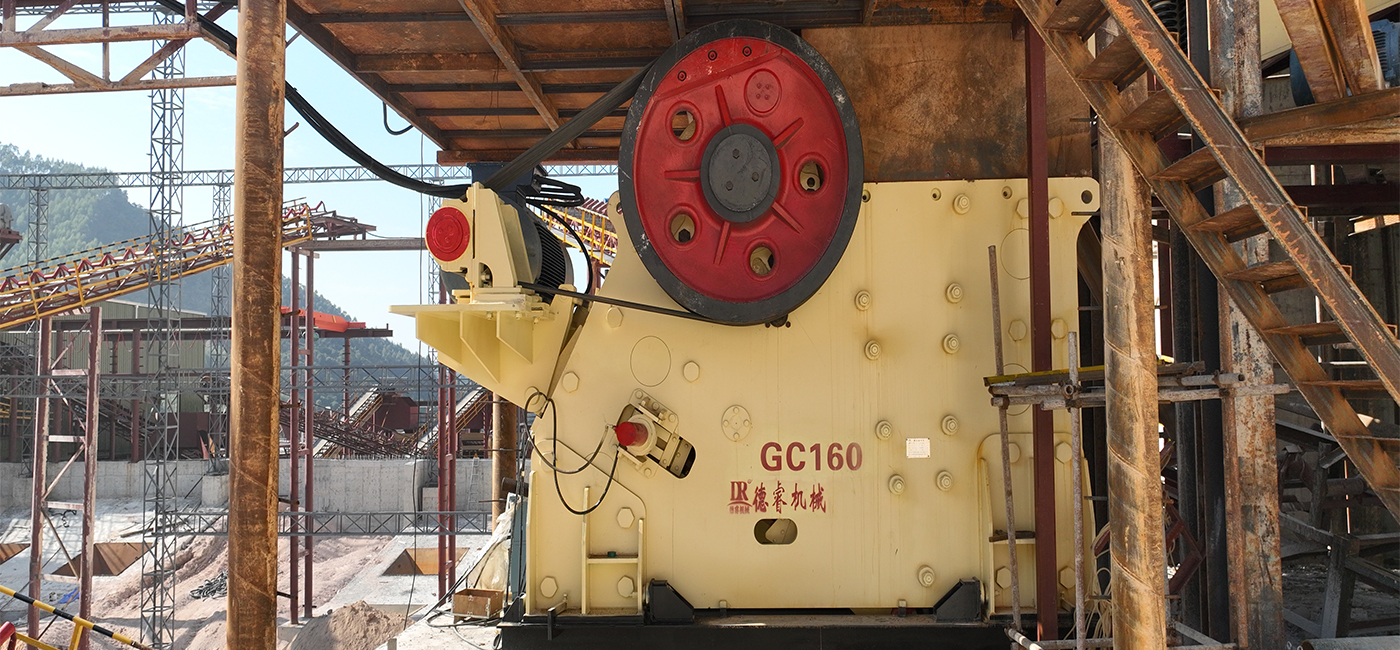

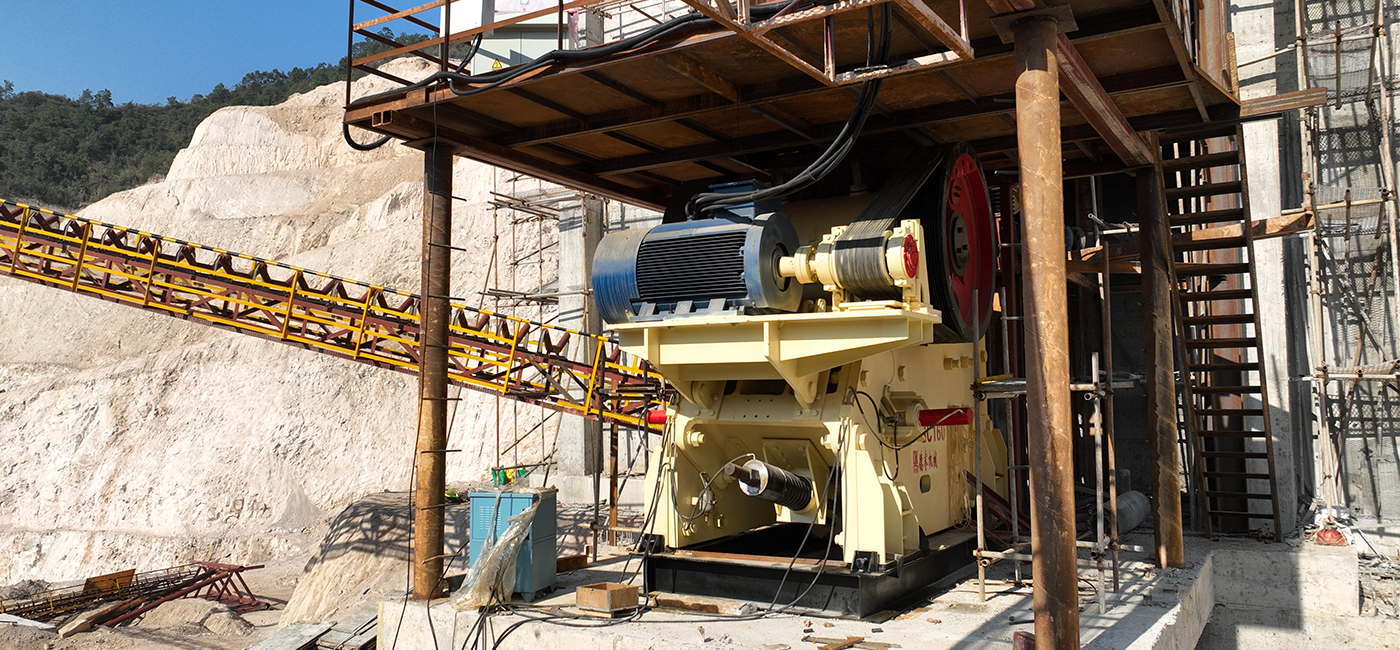

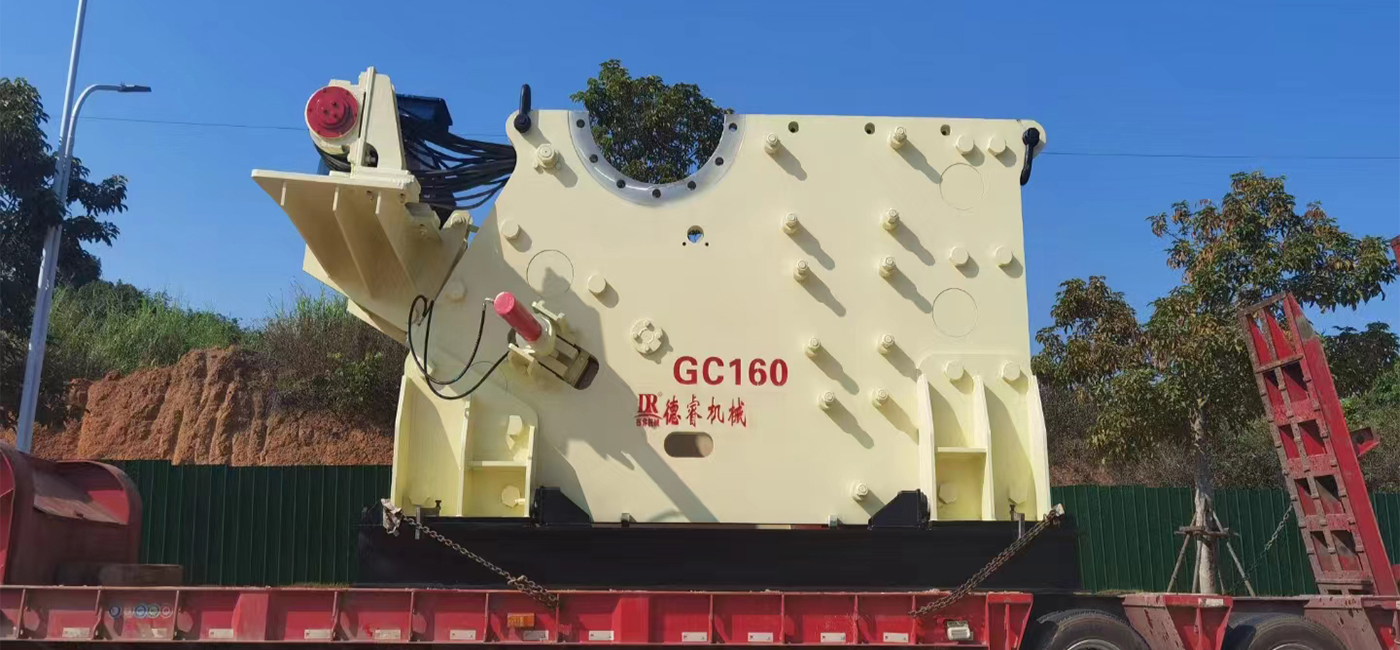

Gallery

Features

Technical specifications

Gallery

Features

The C-series high-performance jaw crusher features a popular V-shaped crushing cavity and a new type of tooth-shaped guard plate, which increases output and extends the maintenance cycle of vulnerable parts.

The integral cast steel bearing seat is designed to match the frame perfectly and greatly enhances the radial strength of the bearing seat while reducing maintenance costs.

This crusher is also safer and more reliable. Its more reasonable dynamic parameter design ensures a larger effective stroke at the bottom of the crushing cavity.

Technical specifications

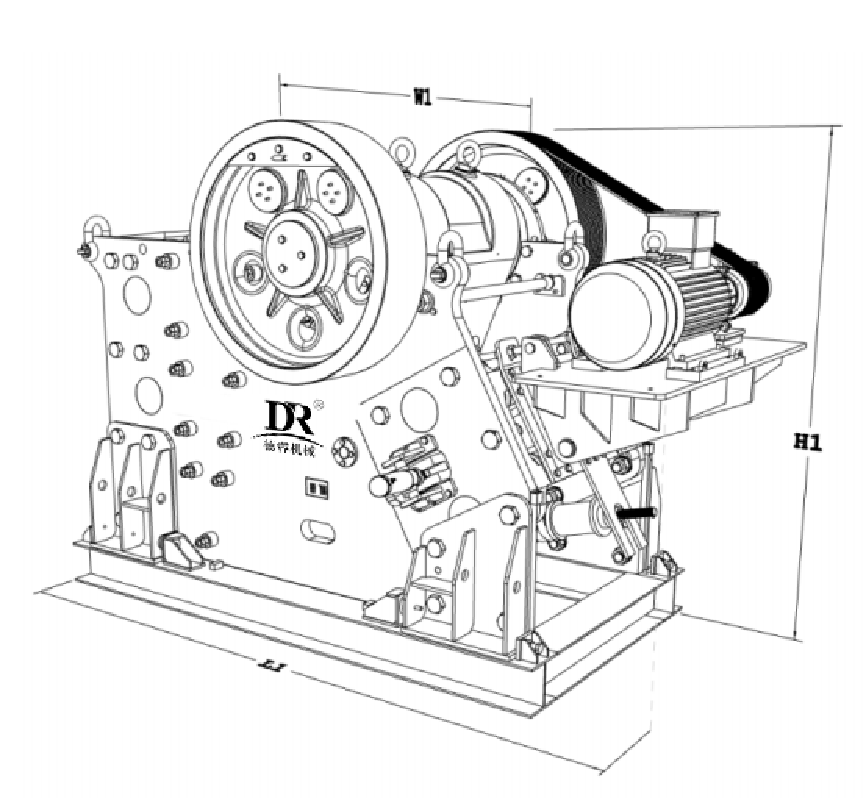

Overall Dimension(mm)
Model	Length (L1)	Width (W1)	Height (H1)
GC80	3010	1970	1875
GC96	3330	2556	2040
GC106	3850	2780	2500
GC110	4330	2900	2720
GC125	4740	3350	3250
GC140	5100	4400	3420
GC160	5424	1870	3930
GC200	6732	2020	4370

		GC80	GC96	GC106	GC110	GC125	GC140	GC160	GC200
Feed Opening(mm)		800x510	930x580	1100x700	1100x850	1250x950	1400x1070	1600x1200	2000x1500
Discharge opening(mm)		40-175	60-175	70-200	70-200	100-250	1 50- 500	150-300	175-300
Capacity(tph)		65-380	120-455	155-580	190-625	290-845	385-945	520-1275	760-1590
Power(kw)		75	90	110	160	185	220	315	400
Particle Size(mm)	CSS(mm)	tph	tph	tph	tph	tph	tph	tph	tph
0-30	20
0-35	25
0-45	30
0-60	40	65-85
0-75	50	80-95
0-90	60	95-125	120-140
0-105	70	115-150	130-170	155-185	190-250
0-120	80	130-170	150-195	170-220	210-275
0-135	90	150-195	170-215	190-240	235-305
0-150	100	165-215	200-225	210-270	255-330	290-380
0-185	125	210-275	260-325	250-320	310-405	350-455	385-500
0-225	150	250-325	300-405	300-380	370-480	410-535	455-590	520-575
0-260	175	290-380	350-455	350-450	425-550	470-610	520-675	595-775	760-990
0-300	200			420-580	480-625	530-690	590-765	675-880	855-1110
0-340	225					590-770	655-850	750-975	945-1230
0-375	250					650-845	725-945	825-1070	1040-1350
0-410	275							900-1170	1130-1470
0-450	300							980-1275	122-1590
